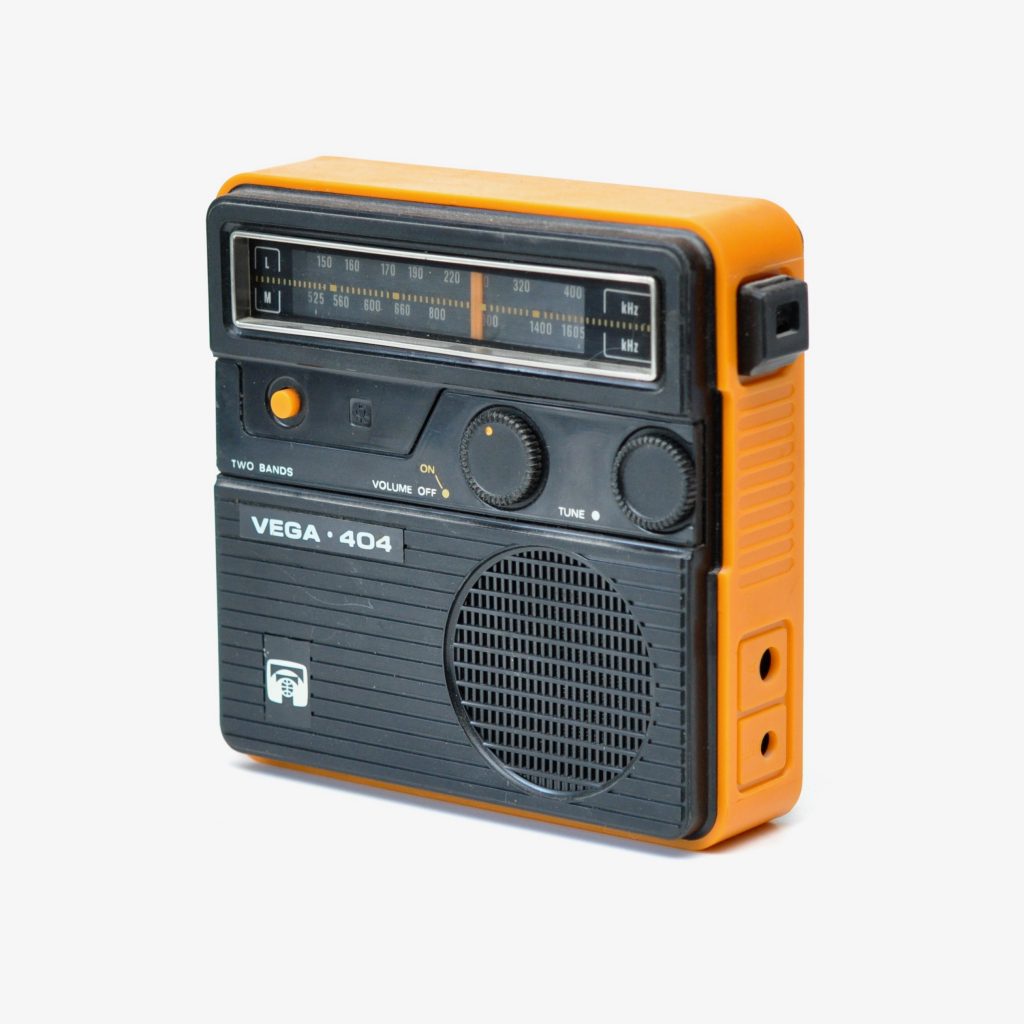

For model Vega {Вега} 404, Berdsk Radio Works:
Kaunas Lithuania
|
|
|
| Year: 1978 |
Category: Broadcast Receiver – or past WW2 Tuner |
| Semiconductors (the count is only for transistors) |
3: КТ315 КТ315 КТ315 К174УН9 |
| Main principle |
Super-Heterodyne (Super in general); ZF/IF 465 kHz |
| Tuned circuits |
5 AM circuit(s) |
| Wave bands |
Broadcast (MW) and Long Wave. |
| Details |
|
| Power type and voltage |
Dry Batteries / 9 / 2 x 4,5 / 6 x 1,5 Volt |
| Loudspeaker |
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out |
0.6 W (unknown quality) |
| from Radiomuseum.org |
Model: Vega {Вега} 404 – Berdsk Radio Works |
| Material |
Modern plastics (no Bakelite or Catalin) |
| Shape |
Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) |
178 x 162 x 60 mm / 7 x 6.4 x 2.4 inch |
| Notes |
Der Vega 404 ist ein einfacher Koffersuper für LW und MW. Die NF- Verstärkung übernimmt ein IC (K174UN4B) |
| Net weight (2.2 lb = 1 kg) |
0.8 kg / 1 lb 12.2 oz (1.762 lb) |
| Price in first year of sale |
33.00 ruble |
| Collectors’ prices |
|
Hind: 30€
